#27075 High configuration 5-ton hydraulic uncoiler

#27075 High configuration 5-ton hydraulic uncoiler
image #1
#27075 High configuration 5-ton hydraulic uncoiler
image #2
#27075 High configuration 5-ton hydraulic uncoiler
#27075 High configuration 5-ton hydraulic uncoiler
Price, FOB: 7480.37$*
Packing: 1/1
Pieces in box: 1
Price per item: 7480.37$
* The old price! To check with the factory!

Description

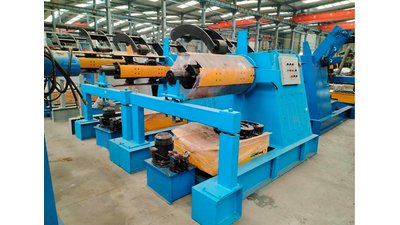

High configuration 5-ton hydraulic uncoiler
Equipment parameters:
1. Equipment size: 3200 * 1500 * 1800mm
2. Equipment frame: The base is made of 300H steel, and the front plate of the box is welded with 16mm thick steel plate
3. Equipment spindle: support material spindle: made of thick walled seamless steel pipe, with a diameter of 194 * 40mm
4. Hydraulic cylinder: One expansion cylinder with a diameter of 125mm * 100 (with a rotary joint)
5. Hydraulic pump station: 3kw (pump valve Beijing Huade)
6. Rated power of the host: 3kw Shanghai Bojiang brand
7. Inner diameter of steel coil: 470-520mm
8. Feeding width: 1250mm
9. Equipment bearing capacity: 5 tons, equipment weight is about 2.8 tons (including trolley)
10. Electrical control system: 5.5kw frequency converter, Sanjing brand, and Delixi electrical control components
11. Attachment: With auxiliary support, wall pressing device, and feeding trolley
Advantages:
1. The load-bearing spindle is made of high-strength, fatigue resistant seamless steel on the rear wall, which has been turned and processed, with strong strength and high load-bearing capacity.
2. The expansion coil adopts hydraulic control, which is convenient, fast, and stable.
3. Electrical control, high precision, good automation, frequency converter control, and adjustable speed

Feeding trolley parameters:
1、 Trolley lifting: dual oil cylinder diameter 90mm, stroke 240mmm
2、 Trolley forward: 400 type, hydraulic motor
3、 Trolley feeding: panel length 1.1 meters, panel width 0.7 meters
4、 Trolley track: width: 700mm, length: 3 meters
5、 Trolley travel: height travel: 400mm

Specifications

  • Shipping pieces 1
  • Packing 1/1
  • Volume, m³ 8.65
  • Carton weight (kg) 2800.0
  • Manufacturer code BZY
  • Minimal Qty 1
  • Form of item Rectangle prism
  • Length 3200
  • Width 1500
  • Height 1800
