Price, FOB: 19143.94$
Packing: 1/1
Pieces in box: 1
Price per item: 19143.94$

Description

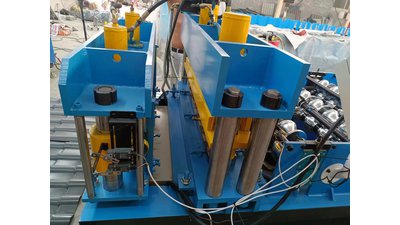

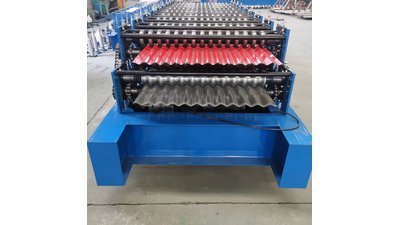

Tile pressing machinery
Equipment installation overall size: 8000mm × 1500mm × 1800mm
Feed width: 1250mm. The feeding platform adopts a manual adjustment for precise feeding
Feed plate thickness: 0.4~1.0mm galvanized sheet, color steel plate
Forming shaft diameter: 80mm diameter (solid spindle)
Forming process: 15 rows+15 rows forming
Roller material: Large roller 45 # precision turning, deep quenching, hard chromium plating, mirror plating (delayed for 1 hour), equipment weight approximately 8.5-9 tons (subject to actual equipment)
Cutting method: reinforced hydraulic automatic floor cutting system (without material connection and labor saving)
Hydraulic station power: 11kw high-speed hydraulic air-cooled belt heat dissipation pump station
Drive mode: 7.5kw servo motor with fast speed and precise board output
Main bearing: National standard quenched bearing steel bearing
Equipment rack: thickened 400 # national standard H steel welding plate: 18mm
Transmission method: 1.2 inch brand national standard quenching chain transmission
Cutting blade material: Gr12 molybdenum vanadium blade, thick steel plate, welded, profiled, shear guide pillars, all thickened, reinforced, precision turned, quenched, shear oil cylinder, high-speed hydraulic oil cylinder
Fixing method: Grade 8.8 high-strength screw, thickened wall tie rod, thickened square steel hanging wire plate
Servo board output speed: single board 16-25 meters/minute, glazed tile 4-6 meters/minute
Electronic control system: The entire machine adopts the most advanced electronic control system, with a 10 inch touch screen and a split electronic box of electronic components from brands such as Delixi Zhengtai. It can input 50 order sizes and has a broken board reminder function.
Random accessories: one pair of upper and lower cutting knives, one solenoid valve, two counter wheels, four solenoid valve light caps, four travel switches, four buttons, and ten electronic fuses

Specifications

  • Shipping pieces 1
  • Packing 1/1
  • Volume, m³ 21.6
  • Carton weight (kg) 8500.0
  • Manufacturer code BZY
  • Minimal Qty 1
  • Form of item Rectangle prism
  • Length 8000
  • Width 1500
  • Height 1800
